Swiss-type machining has become an important option for manufacturers producing small components that require precision and repeatability. The technology works especially well when conventional turning methods may struggle with long, narrow, or detailed workpieces.

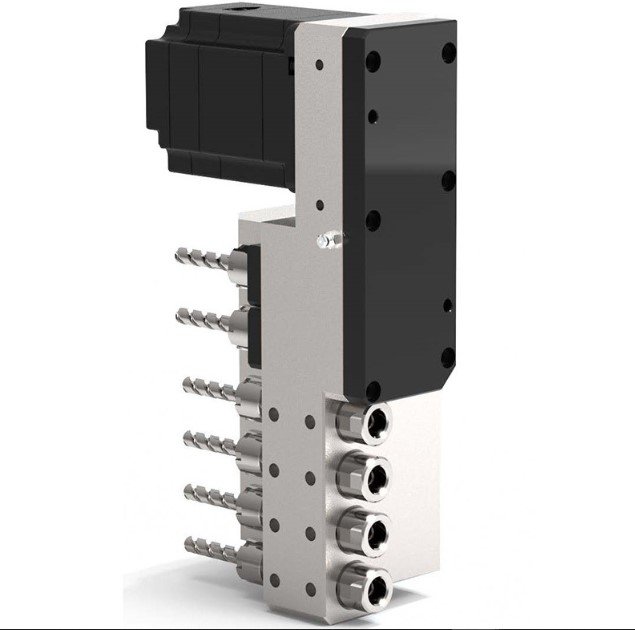

A swiss type lathe machine suits applications where the workpiece needs stable support close to the cutting area. Its design makes it particularly useful for manufacturing small-diameter components with demanding dimensional requirements and complex features.
Small-Diameter Components
Swiss-type lathes generally perform well when manufacturers need to machine components with relatively small diameters. The guide bushing supports the material near the cutting tool, helping limit deflection during machining.
This advantage becomes especially useful when producing precision parts where even minor movement could affect dimensional accuracy.
Common examples include pins, shafts, bushings, fittings, and other miniature cylindrical components.
Long And Slender Parts
Long, narrow workpieces can present challenges on conventional turning equipment. Cutting forces may cause the material to deflect, particularly when the unsupported section becomes longer.
Swiss-type machines address this challenge by supporting the material close to the cutting zone. This setup provides better control during machining of slender components.
The result can include improved dimensional consistency and more stable cutting conditions.
Short Precision Components
Swiss-type machines are not limited to long parts. They can also handle short, small-diameter components when their dimensions and machining requirements match the machine’s specifications.
The key consideration involves the overall geometry rather than length alone. A short component with multiple precision features may benefit from the machine’s multi-axis capabilities and tooling flexibility.
Manufacturers should evaluate the complete part drawing before selecting equipment.
Components With Tight Tolerances
Part size and tolerance often go together in precision manufacturing. Small components frequently require accurate diameters, hole positions, threads, and other detailed features.
Stable workpiece support helps maintain controlled machining conditions. However, actual achievable tolerances depend on factors such as material, tooling, machine condition, thermal effects, and cutting parameters.
Manufacturers should therefore review application-specific accuracy requirements rather than assuming one tolerance range applies to every part.
Parts With Multiple Features
Component size alone does not determine whether Swiss-type machining provides an advantage. Geometry also plays a major role.
A small component may include:
- Cross holes
- Threads
- Grooves
- Slots
- Flats
- Milled surfaces
- Internal holes
A suitable multi-axis configuration can complete several of these features within one setup. This capability may reduce secondary operations and improve production efficiency.
Tiny Components For Precision Applications
Miniature components often require careful control of cutting forces and tooling. The smaller the feature, the more important machine stability and tool selection become.
Swiss-type machining can provide a useful production method for miniature parts used in electronics, instrumentation, medical equipment, automotive systems, and other precision applications.
The specific application should determine the required machine configuration and tooling setup.
How Material Diameter Affects Machine Selection
The diameter of the raw bar stock should fall within the machine’s working range. Manufacturers should compare their typical material diameters with the machine’s maximum and minimum capacities.
Choosing equipment with an appropriate bar capacity helps prevent limitations when production requirements change.
Material type also matters. Aluminum, brass, stainless steel, titanium, and engineering plastics can require different cutting conditions and tooling strategies.
Consider Part Length Alongside Diameter
A component’s length-to-diameter ratio provides useful information when deciding whether Swiss-type machining makes sense. Long, slender components generally gain more from close workpiece support than short, rigid parts.
However, manufacturers should not rely on a simple ratio alone. Part geometry, material stiffness, tolerance requirements, and machining forces all influence the suitability of the process.
Reviewing actual component drawings provides a more reliable basis for equipment selection.
Complex Small Parts Can Benefit From Multi-Axis Machining
Some small components require several operations despite their compact dimensions. A part may need turning, drilling, threading, milling, and grooving before it reaches its finished form.
Multi-axis Swiss-type equipment can coordinate different tools and movements to complete these operations efficiently.
This capability can reduce workpiece transfers and help maintain positional consistency between features.
High-Volume Small Components
Size becomes particularly important when manufacturers produce thousands or millions of components. A machine that handles small parts efficiently can reduce cycle times and simplify production.
Swiss-type machining supports automated workflows and can work with automatic bar feeding systems for extended production runs.
These features make the technology attractive for manufacturers seeking repeatable production of small precision components.
What Size Should You Avoid?
A Swiss-type machine may not provide the best solution for every component. Very large or heavy workpieces may exceed the machine’s bar capacity, machining envelope, or spindle capabilities.
Manufacturers should also question whether the additional capabilities of Swiss-type machining provide enough value for large, simple parts.
Always compare the component’s dimensions with the manufacturer’s published specifications before making a purchasing decision.
Check The Machine Specifications
Part dimensions should guide the initial machine comparison. Review specifications such as:
- Maximum bar diameter
- Maximum machining length
- Spindle speed
- Axis configuration
- Tool capacity
- Live tooling options
- Guide bushing specifications
- Material compatibility
These details help determine whether the machine can accommodate your component range.
Consider The Complete Production Process
The best machine depends on more than the finished part dimensions. Manufacturers should also consider material loading, tooling, cycle time, inspection requirements, automation, and secondary operations.
For example, a small part that requires several machining processes may benefit more from a multi-axis Swiss-type machine than a simple component that needs only basic turning.
JSWAY offers CNC machining solutions designed for precision manufacturing applications. Manufacturers can review its Swiss-type equipment according to their specific component dimensions and production requirements.
Final Thoughts
Swiss-type lathes work particularly well with small-diameter, slender, detailed, and precision-focused components. Their workpiece support system can help control deflection, while multi-axis capabilities can allow several operations within one setup.
The ideal component size depends on the machine’s bar capacity, machining envelope, material requirements, tolerances, and overall geometry.
JSWAY provides Swiss-type CNC machining solutions for manufacturers working with demanding small-part applications. Comparing actual component drawings with machine specifications can help you determine whether Swiss-type machining fits your production needs.
